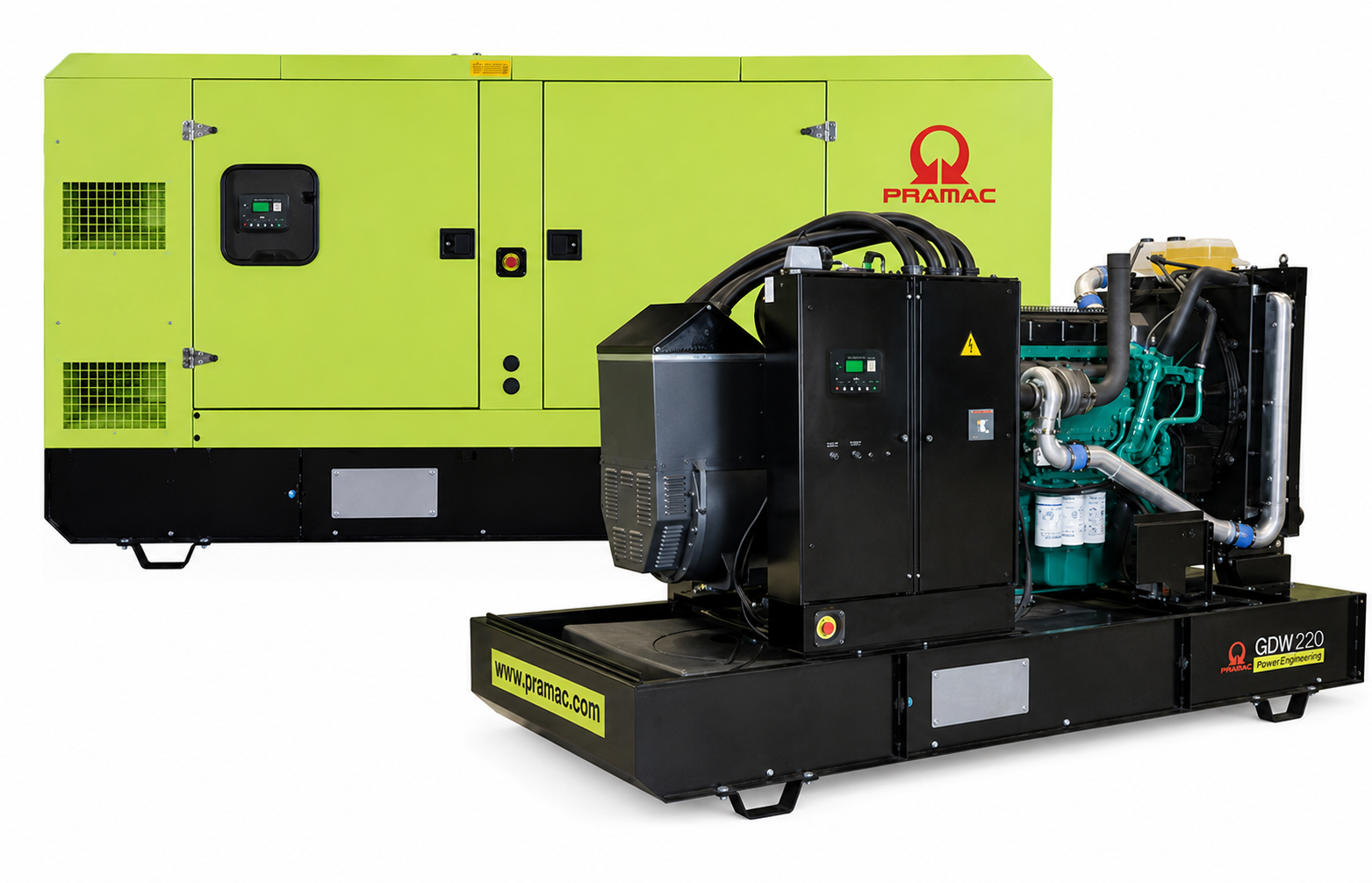

Pramac GDW220V/FS3A | 176kW Diesel Generator | Three-Phase | Volvo Engine

The Pramac GDW220V/FS3A is a heavy-duty three-phase diesel generator delivering 176kW (220kVA) emergency standby power and 160kW (200kVA) prime power. Powered by a Stage IIIA Volvo TAD753GE engine and fitted with a brushless Mecc Alte ECO38 2S4 C alternator, it provides dependable power for demanding commercial, industrial and backup applications.



Pramac GDW220V/FS3A 176kW Diesel Generator

The Pramac GDW220V/FS3A is a powerful three-phase diesel generator developed for demanding commercial, industrial and emergency backup applications. Delivering 176kW (220kVA) emergency standby power and 160kW (200kVA) prime power, it provides a reliable electricity supply for factories, warehouses, construction projects, agricultural facilities, commercial premises and critical infrastructure.

Powered by a proven Volvo TAD753GE diesel engine, the generator combines strong performance with dependable operation. The 7.15-litre, six-cylinder engine features turbocharged aspiration, electronic speed governing and an efficient water-cooling system. It operates at 1,500rpm and complies with Stage IIIA exhaust-emission requirements.

The Volvo engine is paired with a premium Mecc Alte ECO38 2S4 C alternator. Its brushless, four-pole design incorporates Class H insulation, IP23 protection and a voltage tolerance of ±1%, helping it deliver consistent and stable electrical output under changing load conditions.

The generator produces 400/230V three-phase electricity at 50Hz, with a power factor of 0.8. Its electrical system provides a nominal current of 289A, a maximum current of 318A and protection through a 400A circuit breaker.

Fuel consumption is approximately 35.04 litres per hour at 75% prime load and 44.32 litres per hour at 100% prime load. Optional fuel tanks ranging from 350 to 2,200 litres allow operating autonomy to be matched to the requirements of the installation.

The GDW220V/FS3A is available in open, soundproof canopy and extra-silent canopy configurations. The standard canopy version produces a noise pressure level of 68dB(A) at seven metres, while the extra-silent version reduces this to just 64dB(A) at seven metres.

Available control solutions include an Automatic Control Panel (ACP) with Automatic Mains Failure functionality and a Modular Parallel Panel (MPP). These control options provide comprehensive generator monitoring, protection, event logging, remote connectivity and support for parallel installations containing up to 32 generating sets.

Manufactured in accordance with applicable ISO 8528 requirements, the Pramac GDW220V/FS3A is an excellent choice for organisations requiring powerful, dependable and professionally engineered prime or emergency standby power.

Features & Benefits

• 176kW / 220kVA emergency standby power
• 160kW / 200kVA prime power
• Stage IIIA Volvo TAD753GE diesel engine
• Six-cylinder, 7.15-litre engine
• Turbocharged aspiration
• Electronic speed governor
• Water-cooled engine system
• Mecc Alte ECO38 2S4 C alternator
• Brushless, four-pole alternator
• Class H alternator insulation
• IP23 alternator protection
• Stable three-phase electrical output
• 400/230V output at 50Hz
• 400A circuit breaker
• 24V electric starting system
• Automatic Mains Failure control available
• Parallel operation with up to 32 generators available
• Open, soundproof and extra-silent versions
• Noise levels as low as 64dB(A) at seven metres
• Fuel-tank capacities from 350 to 2,200 litres
• Suitable for industrial, commercial and backup power

Technical Specifications

• Emergency Standby Power: 220kVA / 176kW
• Prime Power: 200kVA / 160kW
• Voltage: 400/230V
• Frequency: 50Hz
• Phases: Three-phase
• Power Factor: 0.8
• Fuel: Diesel
• Engine: Volvo TAD753GE
• Emission Level: Stage IIIA
• Alternator: Mecc Alte ECO38 2S4 C
• Starting System: 24V electric
• Nominal Current: 289A
• Maximum Current: 318A
• Circuit Breaker: 400A
