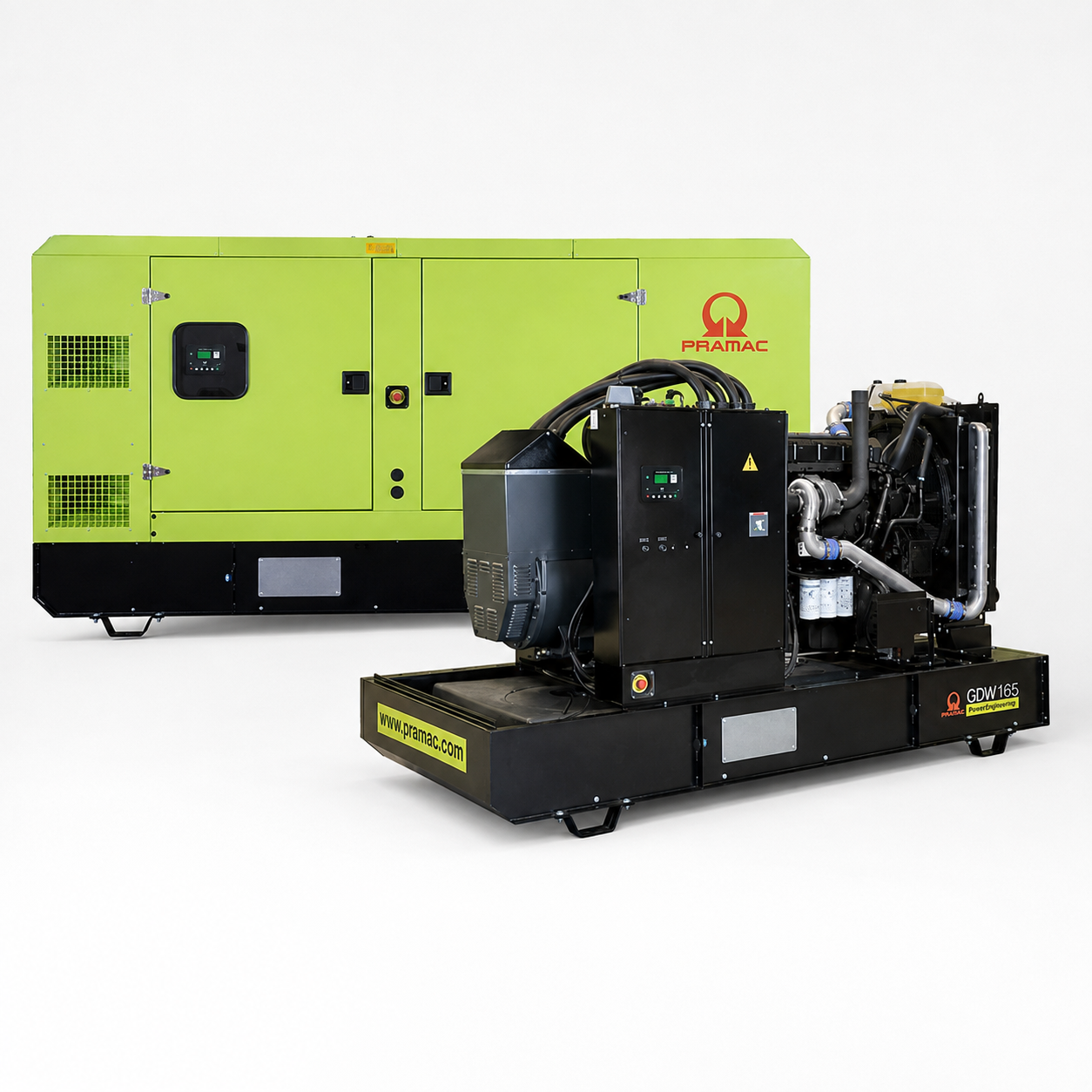

Pramac GDW165P/FS3A | 132kW Diesel Generator | Three-Phase | Perkins Engine

The Pramac GDW165P/FS3A is a Stage IIIA three-phase diesel generator delivering 165kVA / 132kW standby power and 150kVA / 120kW prime power. This configuration combines an electronically governed Perkins engine with a brushless Leroy Somer alternator for dependable industrial, commercial and emergency backup power.



Pramac GDW165P/FS3A 165kVA / 132kW Three-Phase Diesel Generator

The Pramac GDW165P/FS3A Three-Phase Diesel Generator is engineered to provide dependable power for demanding commercial, industrial and standby applications. It is suitable for factories, warehouses, construction projects, agricultural operations, commercial premises and emergency backup installations.

The GDW165P/FS3A delivers 165kVA / 132kW of Emergency Standby Power (ESP) and 150kVA / 120kW of Prime Power (PRP). Its 400/230V three-phase output provides the capacity required to support industrial machinery, electrical equipment and commercial power systems.

At the heart of the generator is a Perkins 1106D-E70TAG2 six-cylinder diesel engine with a 7,010cc displacement. The engine is turbocharged and water-cooled, providing reliable performance at a nominal operating speed of 1,500rpm.

This engine meets Stage IIIA emissions requirements, making it suitable for applications where this emissions classification is required. Its electronic speed governor provides precise engine control, while the electric starting system and 12V electrical circuit support straightforward and dependable operation.

This configuration pairs the Perkins engine with a Leroy Somer LSA 44.3 L10 brushless alternator. The four-pole alternator features Class H insulation, IP23 protection and an efficiency rating of 93.1% at full load. It delivers stable three-phase electrical output at 50Hz with a 0.8 power factor.

Fuel consumption is approximately 28.09 litres per hour at 75% prime power and 34.90 litres per hour at 100% prime power. Optional fuel tanks ranging from 350 to 2,200 litres allow the generator’s operating time to be configured around the requirements of the installation.

The standard canopy version features a weather-resistant enclosure manufactured from galvanised sheet metal. High-quality soundproofing materials and a residential silencer help reduce noise emissions, while large lateral doors with key-lockable handles provide convenient access for maintenance.

The standard canopy has a stated sound pressure level of approximately 68dB(A) at seven metres. For noise-sensitive locations, the Extra Silent canopy reduces the stated sound pressure level to approximately 64dB(A) at seven metres.

Manual Remote Start, Automatic Control and Modular Parallel control panels are available. These options allow the generator to be configured for manual operation, automatic mains-failure backup or parallel operation involving multiple generating sets.

Features & Benefits

• 165kVA / 132kW emergency standby power
• 150kVA / 120kW prime power
• Stable 400/230V three-phase output
• Perkins 1106D-E70TAG2 diesel engine
• Stage IIIA exhaust emissions classification
• Six-cylinder in-line engine configuration
• 7,010cc engine displacement
• Turbocharged aspiration
• Water-cooled engine system
• Electronic speed governor
• Electric starting system
• Leroy Somer LSA 44.3 L10 alternator
• Brushless four-pole alternator design
• Class H alternator insulation
• IP23 alternator protection
• 93.1% alternator efficiency at full load
• Optional fuel tanks from 350 to 2,200 litres
• Standard and Extra Silent canopies available
• Weather-resistant galvanised steel enclosure
• Large, lockable service-access doors
• Manual, automatic and parallel control options
• G2 load-acceptance classification under ISO 8528-5
• Suitable for standby and prime-power applications

Technical Specifications

• Emergency Standby Power (ESP): 165kVA / 132kW
• Prime Power (PRP): 150kVA / 120kW
• Voltage: 400/230V
• Frequency: 50Hz
• Power Factor: 0.8
• Phases: Three-phase
• Maximum Current: 238A
• Nominal Current: 217A
• Circuit Breaker: 250A
• Fuel Type: Diesel
• Engine Manufacturer: Perkins
• Engine Model: 1106D-E70TAG2
• Exhaust Emissions Level: Stage IIIA
• Engine Displacement: 7,010cc
• Cylinders: Six in-line
• Aspiration: Turbocharged
• Cooling System: Water-cooled
• Nominal Engine Speed: 1,500rpm
• Speed Governor: Electronic
• Starting System: Electric
• Alternator Manufacturer: Leroy Somer
• Alternator Model: LSA 44.3 L10
• Alternator Type: Brushless
• Alternator Poles: Four
• Alternator Protection: IP23
• Insulation Class: Class H
• Fuel Consumption at 75% PRP: 28.09L/h
• Fuel Consumption at 100% PRP: 34.90L/h
• Open Version Dimensions: 3,055 × 1,200 × 1,703mm
• Open Version Weight: 1,711kg
• Canopy Version Dimensions: 3,702 × 1,200 × 2,050mm
• Canopy Version Weight: 2,248kg
• Canopy Noise at 7m: 68dB(A)
• Extra Silent Canopy Dimensions: 3,950 × 1,200 × 2,520mm
• Extra Silent Canopy Weight: 2,970kg
• Extra Silent Canopy Noise at 7m: 64dB(A)

Need Assistance?

If you’re unsure whether this Pramac GDW165P/FS3A 165kVA / 132kW Three-Phase Diesel Generator is right for your application, contact the Leader Pro team. We’ll be happy to help you select the correct alternator, fuel tank and control-panel configuration for your power requirements.
