Pramac GDW165P/FNE | 132kW Diesel Generator | Three-Phase | Perkins Engine

The Pramac GDW165P/FNE is a powerful three-phase diesel generator delivering 165kVA / 132kW standby power and 150kVA / 120kW prime power. It combines a turbocharged Perkins engine with a brushless Mecc Alte alternator for dependable industrial, commercial and emergency backup power.

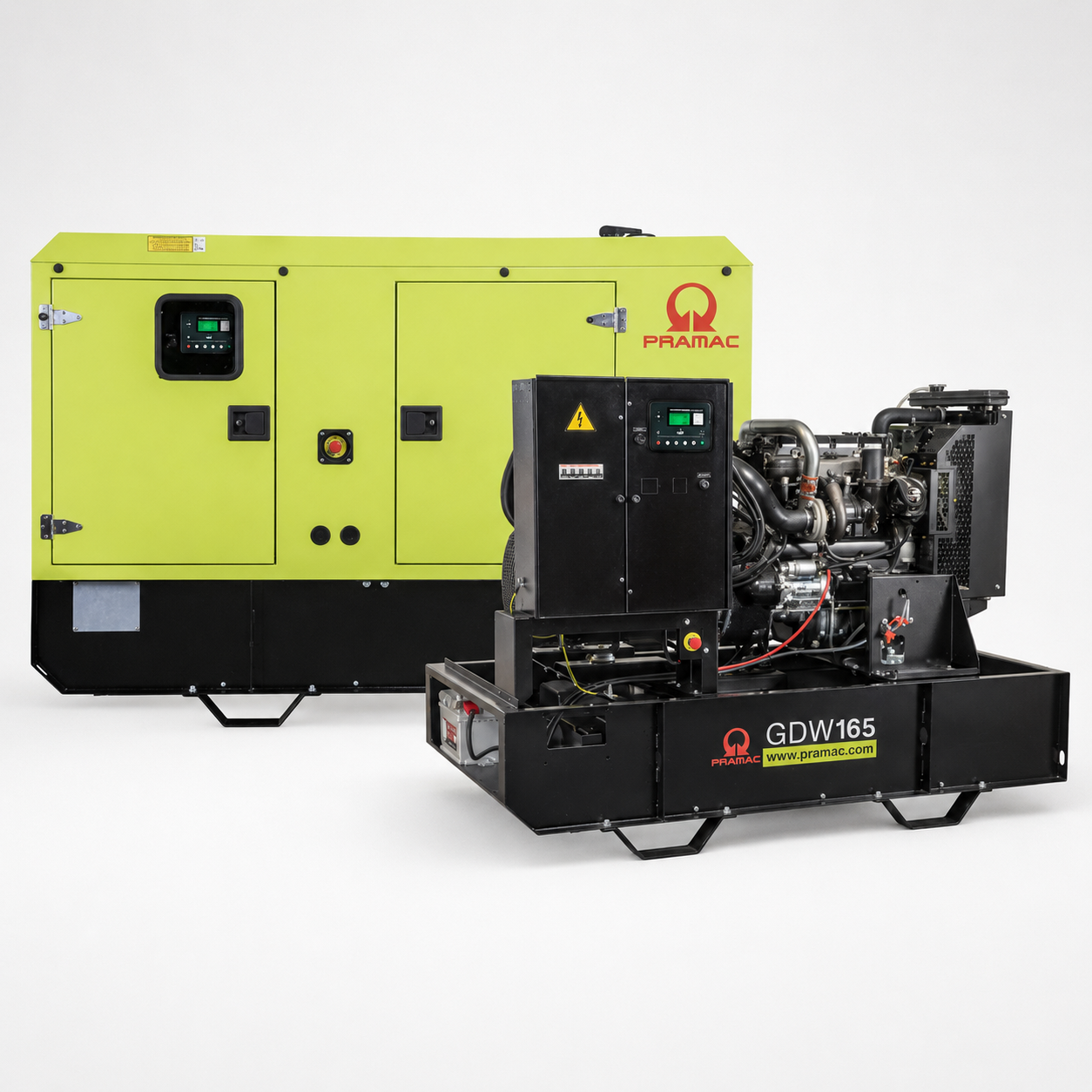

Pramac GDW165P/FNE 165kVA / 132kW Three-Phase Diesel Generator

The Pramac GDW165P/FNE Three-Phase Diesel Generator is engineered to provide reliable power for demanding commercial, industrial and standby applications. It is suitable for factories, warehouses, construction projects, agricultural operations, commercial premises and emergency backup installations.

The GDW165P/FNE delivers 165kVA / 132kW of Emergency Standby Power (ESP) and 150kVA / 120kW of Prime Power (PRP). Its 400/230V three-phase output provides the capacity required to support industrial machinery, electrical equipment and commercial power systems.

At the heart of the generator is a Perkins 1106A-70TAG2 six-cylinder diesel engine with a 7,010cc displacement. The engine is turbocharged and water-cooled, providing dependable performance at a nominal operating speed of 1,500rpm.

A mechanical speed governor helps maintain consistent engine operation, while the electric starting system and 12V electrical circuit provide straightforward and reliable starting.

The Perkins engine is paired with a Mecc Alte ECP34 1L4 C brushless alternator. This single-bearing, four-pole alternator features Class H insulation, IP23 protection and an efficiency rating of 93.2% at full load. It delivers stable three-phase power at 50Hz with a 0.8 power factor.

Fuel consumption is approximately 24.98 litres per hour at 75% prime power and 32.69 litres per hour at 100% prime power. Optional fuel tanks ranging from 335 to 1,325 litres allow the generator’s operating time to be configured around the requirements of the installation.

The standard canopy version features a weather-resistant enclosure manufactured from galvanised sheet metal. High-quality soundproofing material and a residential silencer help reduce operating noise, while large lateral doors with key-lockable handles provide convenient access for servicing and maintenance.

The standard canopy has a stated sound pressure level of approximately 68dB(A) at seven metres. An Extra Silent canopy is also available for installations where stricter noise restrictions apply.

Manual Remote Start, Automatic Control and Modular Parallel control panels are available. These options allow the generator to be configured for manual operation, automatic mains-failure backup or parallel operation involving multiple generating sets.

Features & Benefits

• 165kVA / 132kW emergency standby power
• 150kVA / 120kW prime power
• Stable 400/230V three-phase output
• Perkins 1106A-70TAG2 diesel engine
• Six-cylinder in-line engine configuration
• 7,010cc engine displacement
• Turbocharged aspiration
• Water-cooled engine system
• Mechanical speed governor
• Electric starting system
• Mecc Alte ECP34 1L4 C alternator
• Brushless, single-bearing alternator design
• Class H alternator insulation
• IP23 alternator protection
• 93.2% alternator efficiency at full load
• Optional fuel tanks from 335 to 1,325 litres
• Weather-resistant galvanised steel canopy
• Extra Silent enclosure available
• Large, lockable service-access doors
• Manual, automatic and parallel control options
• G2 load-acceptance classification under ISO 8528-5
• Suitable for standby and prime-power applications

Technical Specifications

• Emergency Standby Power (ESP): 165kVA / 132kW
• Prime Power (PRP): 150kVA / 120kW
• Voltage: 400/230V
• Frequency: 50Hz
• Power Factor: 0.8
• Phases: Three-phase
• Maximum Current: 238A
• Nominal Current: 217A
• Circuit Breaker: 250A
• Fuel Type: Diesel
• Engine Manufacturer: Perkins
• Engine Model: 1106A-70TAG2
• Engine Displacement: 7,010cc
• Cylinders: Six in-line
• Aspiration: Turbocharged
• Cooling System: Water-cooled
• Nominal Engine Speed: 1,500rpm
• Speed Governor: Mechanical
• Starting System: Electric
• Engine Electrical System: 12V
• Alternator Manufacturer: Mecc Alte
• Alternator Model: ECP34 1L4 C
• Alternator Type: Brushless
• Alternator Poles: Four
• Alternator Protection: IP23
• Insulation Class: Class H
• Fuel Consumption at 75% PRP: 24.98L/h
• Fuel Consumption at 100% PRP: 32.69L/h
• Open Version Dimensions: 2,612 × 1,100 × 1,547mm
• Open Version Weight: 1,522kg
• Canopy Version Dimensions: 3,090 × 1,100 × 1,852mm
• Canopy Version Weight: 1,880kg
• Canopy Noise at 7m: 68dB(A)
• Extra Silent Canopy Dimensions: 3,090 × 1,100 × 2,505mm
• Extra Silent Canopy Weight: 2,174kg
