Pramac GDW150P/FNE | 118kW Diesel Generator | Three-Phase | Perkins Engine

The Pramac GDW150P/FNE is a powerful three-phase diesel generator delivering 148kVA / 118.4kW standby power and 135kVA / 108kW prime power. It combines a turbocharged Perkins engine with a brushless Mecc Alte alternator for dependable commercial, industrial and emergency backup power.

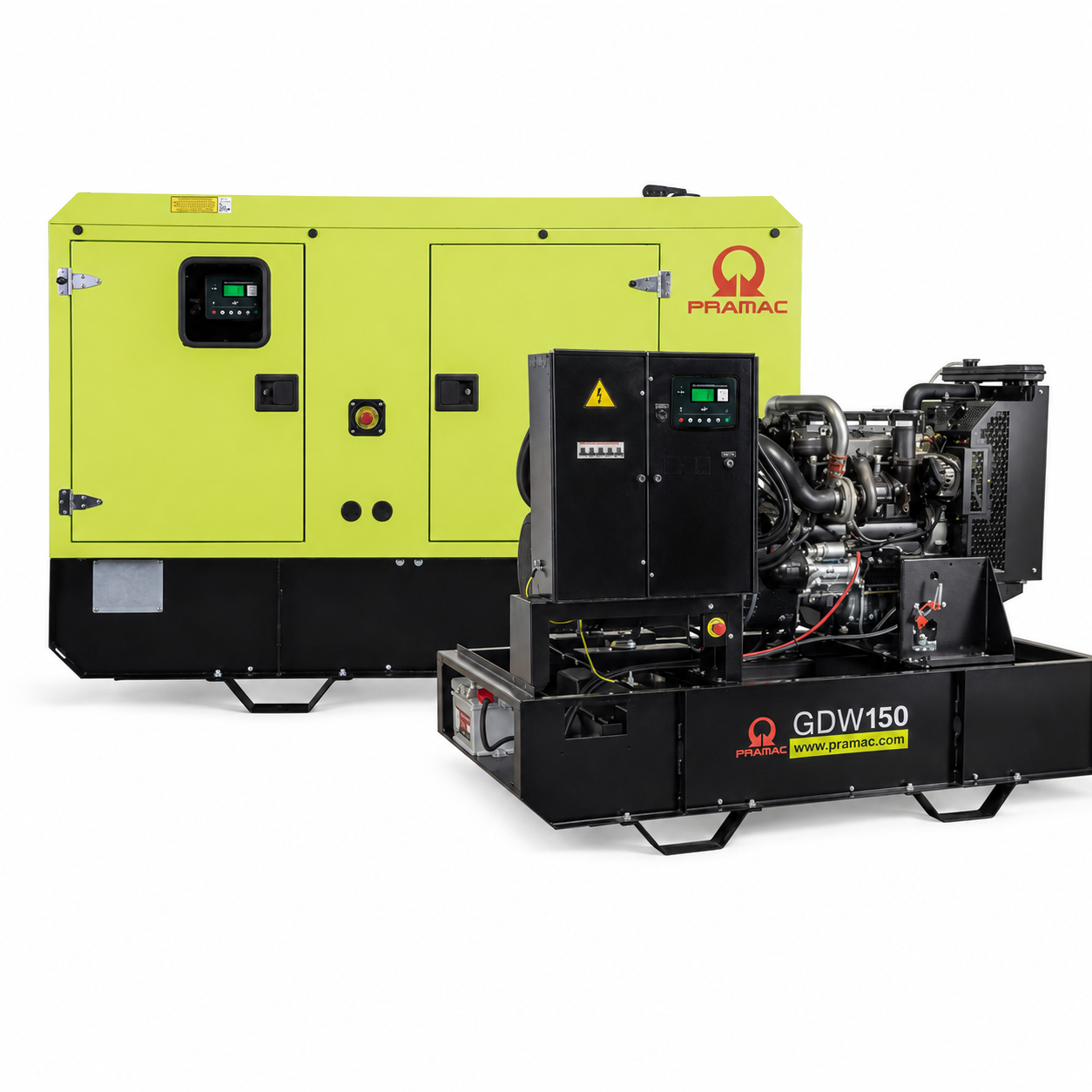

Pramac GDW150P/FNE 148kVA / 118.4kW Three-Phase Diesel Generator

The Pramac GDW150P/FNE Three-Phase Diesel Generator is engineered to provide reliable power for demanding commercial, industrial and standby applications. It is suitable for factories, warehouses, construction projects, agricultural operations, commercial premises and emergency backup installations.

The GDW150P/FNE delivers 148kVA / 118.4kW of Emergency Standby Power (ESP) and 135kVA / 108kW of Prime Power (PRP). Its 400/230V three-phase output provides the capacity needed to support industrial machinery, electrical equipment and commercial power systems.

At the heart of the generator is a Perkins 1106A-70TG1 six-cylinder diesel engine with a 7,010cc displacement. The engine is turbocharged and water-cooled, producing dependable performance at a nominal operating speed of 1,500rpm. A mechanical speed governor and electric starting system provide straightforward and reliable operation.

The Perkins engine is paired with a Mecc Alte ECP34 2M 4C brushless alternator. This four-pole alternator features Class H insulation, IP23 protection and an efficiency rating of 92.9% at full load. It delivers stable three-phase power at 50Hz with a 0.8 power factor.

Fuel consumption is approximately 23.16 litres per hour at 75% prime power and 30.15 litres per hour at 100% prime power. A selection of optional fuel tanks is available, ranging from 335 to 1,325 litres, allowing the generator’s operating time to be configured around the requirements of the installation.

The standard canopy version features a weather-resistant enclosure manufactured from galvanised sheet metal. High-quality soundproofing and a residential silencer help reduce noise emissions, while large lateral doors with lockable handles provide convenient access for servicing and maintenance.

For locations with more demanding noise restrictions, an Extra Silent canopy version is also available. Its additional soundproofing modules reduce sound pressure to approximately 65dB(A) at seven metres, compared with 68dB(A) for the standard canopy version.

Manual Remote Start and Automatic Control Panel configurations are available, allowing the generator to be used for manual operation, remote starting or automatic mains-failure backup power.

Features & Benefits

• 148kVA / 118.4kW emergency standby power
• 135kVA / 108kW prime power
• 400/230V three-phase electrical output
• Perkins 1106A-70TG1 diesel engine
• Six-cylinder in-line engine configuration
• 7,010cc engine displacement
• Turbocharged aspiration
• Water-cooled engine system
• Electric starting system
• Mechanical engine speed governor
• Mecc Alte ECP34 2M 4C brushless alternator
• Class H alternator insulation
• IP23 alternator protection
• 92.9% alternator efficiency at full load
• Optional fuel tanks from 335 to 1,325 litres
• Standard and Extra Silent canopy versions available
• Weather-resistant galvanised steel enclosure
• Large, lockable service-access doors
• Manual and automatic control-panel options
• G2 load-acceptance classification under ISO 8528-5
• Suitable for standby and prime-power applications

Technical Specifications

• Emergency Standby Power (ESP): 148kVA / 118.4kW
• Prime Power (PRP): 135kVA / 108kW
• Voltage: 400/230V
• Frequency: 50Hz
• Power Factor: 0.8
• Phases: Three-phase
• Maximum Current: 214A
• Nominal Current: 195A
• Circuit Breaker: 250A
• Fuel Type: Diesel
• Engine Manufacturer: Perkins
• Engine Model: 1106A-70TG1
• Engine Displacement: 7,010cc
• Cylinders: Six in-line
• Aspiration: Turbocharged
• Cooling System: Water-cooled
• Nominal Engine Speed: 1,500rpm
• Starting System: Electric
• Engine Electrical System: 12V
• Alternator Manufacturer: Mecc Alte
• Alternator Model: ECP34 2M 4C
• Alternator Type: Brushless
• Alternator Poles: Four
• Alternator Protection: IP23
• Insulation Class: Class H
• Fuel Consumption at 75% PRP: 23.16L/h
• Fuel Consumption at 100% PRP: 30.15L/h
• Standard Canopy Dimensions: 3,090 × 1,100 × 1,852mm
• Standard Canopy Weight: 1,827kg
• Standard Canopy Noise at 7m: 68dB(A)
• Extra Silent Canopy Dimensions: 3,090 × 1,100 × 2,505mm
• Extra Silent Canopy Weight: 2,121kg
• Extra Silent Canopy Noise at 7m: 65dB(A)

Need Assistance?

If you’re unsure whether the Pramac GDW150P/FNE 148kVA / 118.4kW Three-Phase Diesel Generator is right for your application, contact the Leader Pro team. We’ll be happy to help you select the ideal generator, fuel tank and control-panel configuration for your power requirements.
