Pramac GDW135I/FNE | 109kW Diesel Generator | Three-Phase | FPT Engine

The Pramac GDW135I/FNE is a powerful three-phase diesel generator delivering 136.1kVA / 108.9kW standby power and 123.5kVA / 98.8kW prime power. It combines a turbocharged FPT diesel engine with a brushless Mecc Alte alternator for dependable commercial, industrial and backup power.

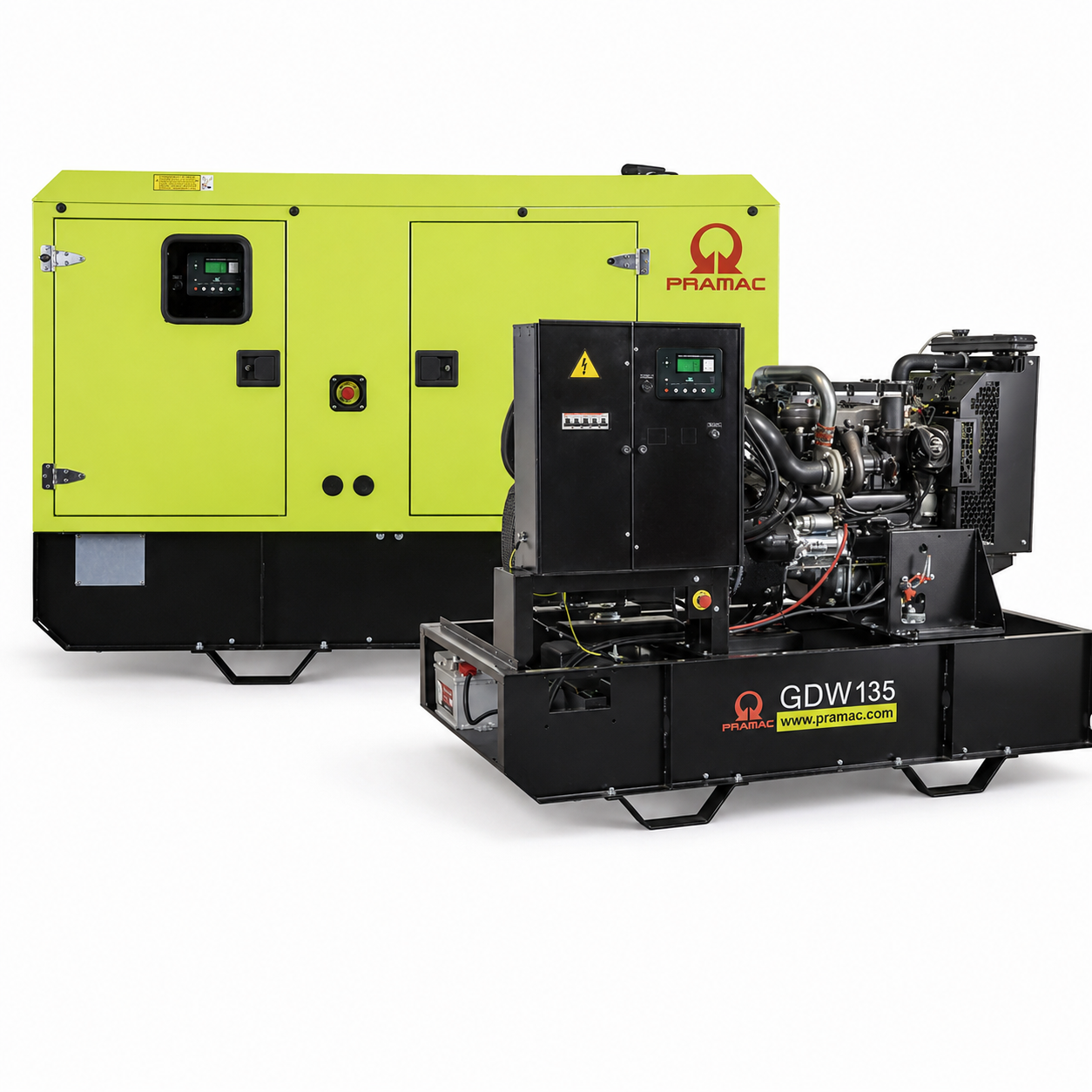

Pramac GDW135I/FNE 136.1kVA / 108.9kW Three-Phase Diesel Generator

The Pramac GDW135I/FNE Three-Phase Diesel Generator is engineered to provide dependable power for demanding commercial, industrial and standby applications. It is suitable for factories, commercial premises, construction projects, agricultural operations and emergency backup installations.

The GDW135I/FNE delivers 136.1kVA / 108.9kW of Emergency Standby Power (ESP) and 123.5kVA / 98.8kW of Prime Power (PRP). Its 400/230V three-phase output provides the capacity required to operate industrial machinery, equipment and commercial electrical systems.

Power is supplied by an FPT NEF45TM3 four-cylinder diesel engine with a 4,500cc displacement. The engine is water-cooled, turbocharged and intercooled, delivering reliable performance at a nominal operating speed of 1,500rpm. An electric starting system provides straightforward and dependable operation.

The FPT engine is paired with a Mecc Alte ECP34-1M 4C brushless alternator. This four-pole alternator features Class H insulation, IP23 protection and an efficiency rating of 92.3% at full load. It delivers stable three-phase power at 50Hz with a 0.8 power factor.

Fuel consumption is approximately 20.01 litres per hour at 75% prime power and 27.39 litres per hour at 100% prime power. A selection of fuel tanks is available, including 350, 500 and 1,000-litre options, allowing the generator’s running time to be configured around the requirements of the installation.

The standard canopy version features a weather-resistant enclosure manufactured from galvanised sheet metal. High-quality soundproofing materials and a residential silencer help reduce operating noise, while large lockable access doors make routine servicing and maintenance more straightforward.

For noise-sensitive locations, an Extra Silent canopy version is also available. This enhanced enclosure incorporates additional soundproofing modules and reduces sound pressure to approximately 64dB(A) at seven metres, compared with 68dB(A) for the standard canopy version.

A choice of manual remote start, automatic mains failure and modular parallel control panels is available. This allows the generating set to be configured for manual operation, automatic standby power or parallel installations involving multiple generators.

Features & Benefits

• 136.1kVA / 108.9kW emergency standby power
• 123.5kVA / 98.8kW prime power
• 400/230V three-phase electrical output
• FPT NEF45TM3 four-cylinder diesel engine
• 4,500cc engine displacement
• Turbocharged and intercooled aspiration
• Water-cooled engine system
• Electric starting system
• Mecc Alte ECP34-1M 4C brushless alternator
• Class H alternator insulation
• IP23 alternator protection
• 92.3% alternator efficiency at full load
• Mechanical engine speed governor
• 350, 500 and 1,000-litre fuel tank options
• Standard and Extra Silent canopy versions available
• Weather-resistant galvanised steel enclosure
• Large, lockable service-access doors
• Manual, automatic and parallel control-panel options
• Suitable for standby and prime-power applications

Technical Specifications

• Emergency Standby Power (ESP): 136.1kVA / 108.9kW
• Prime Power (PRP): 123.5kVA / 98.8kW
• Voltage: 400/230V
• Frequency: 50Hz
• Power Factor: 0.8
• Phases: Three-phase
• Maximum Current: 196A
• Nominal Current: 178A
• Circuit Breaker: 250A
• Fuel Type: Diesel
• Engine Manufacturer: FPT
• Engine Model: NEF45TM3
• Engine Displacement: 4,500cc
• Cylinders: Four in-line
• Aspiration: Turbocharged and intercooled
• Cooling System: Water-cooled
• Nominal Engine Speed: 1,500rpm
• Starting System: Electric
• Engine Electrical System: 12V
• Battery Capacity: 100Ah
• Alternator Manufacturer: Mecc Alte
• Alternator Model: ECP34-1M 4C
• Alternator Type: Brushless
• Alternator Poles: Four
• Alternator Protection: IP23
• Insulation Class: Class H
• Fuel Consumption at 75% PRP: 20.01L/h
• Fuel Consumption at 100% PRP: 27.39L/h
• Standard Canopy Dimensions: 2,757 × 1,120 × 1,846mm
• Standard Canopy Weight: 1,580kg
• Standard Canopy Noise at 7m: 68dB(A)
• Extra Silent Canopy Dimensions: 2,757 × 1,120 × 2,438mm
• Extra Silent Canopy Weight: 1,750kg
• Extra Silent Canopy Noise at 7m: 64dB(A)
