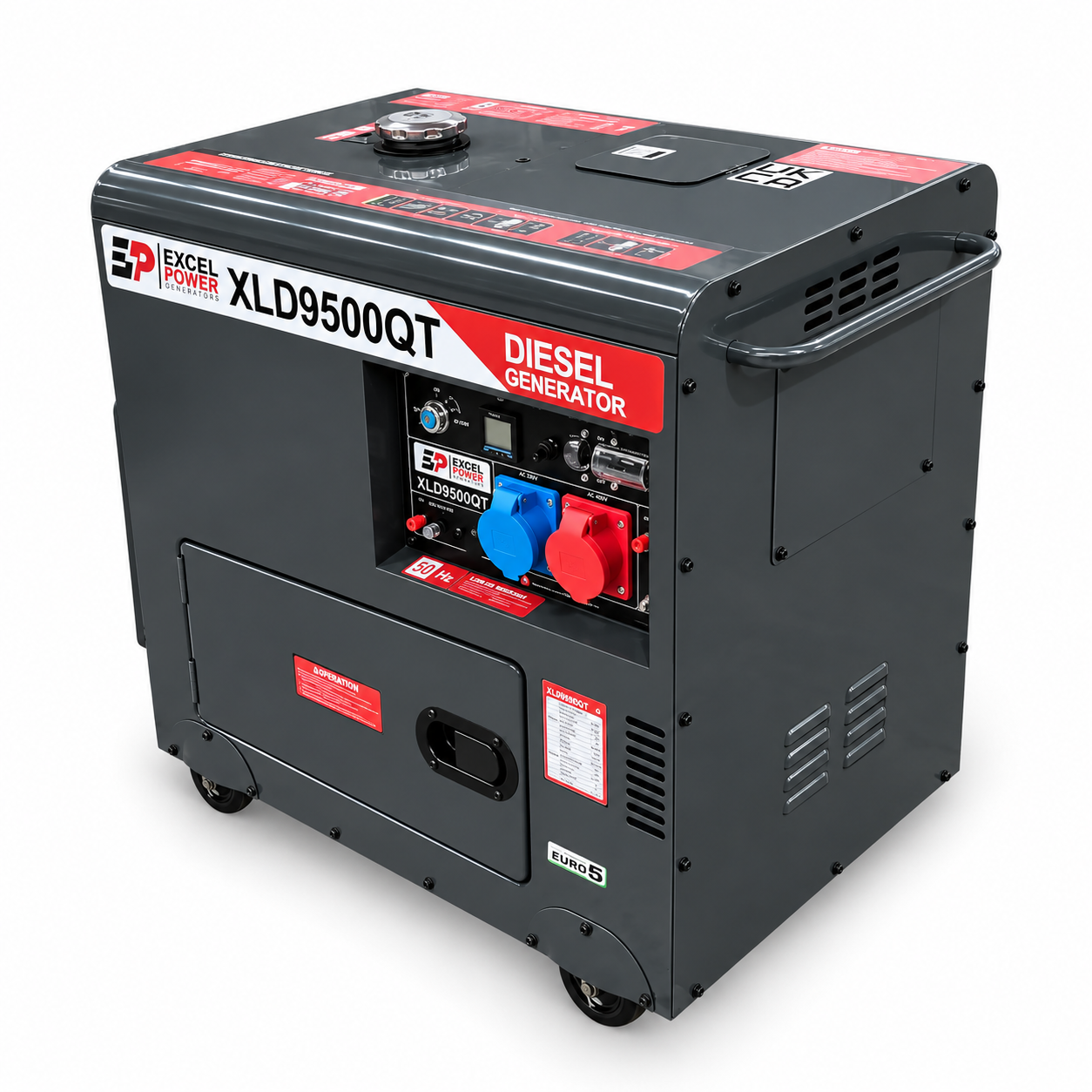

Excel Power XLD9500QT | 6.5kW Three Phase Diesel Generator | 230V & 400V | Electric Start | AVR

Excel Power XLD9500QT | 6.5kW Three Phase Diesel Generator | 230V & 400V | Electric Start | AVR

The Excel Power XLD9500QT 6.5kW Three Phase Diesel Generator is a powerful and versatile enclosed diesel generator designed for professional, commercial, workshop, site and backup power applications requiring access to both 230V single-phase and 400V three-phase power.

Delivering up to 6500W starting power and 6000W rated output, the XLD9500QT combines a robust diesel engine, electric key start, AVR-controlled alternator and a generous 26-litre fuel tank in a durable enclosed design.

6.5kW Maximum / 6kW Rated Output

The XLD9500QT delivers a maximum starting output of 6500W (6.5kW) with a substantial 6000W (6kW) rated output, providing dependable power for demanding equipment and applications.

One of the key advantages of this model is its ability to provide full single-phase and three-phase output, giving users greater flexibility than a conventional three-phase generator where single-phase output may be significantly restricted.

230V Single Phase & 400V Three Phase

Designed for applications where different types of equipment may need to be powered, the XLD9500QT provides both 230V single-phase and 400V three-phase output.

The control panel includes:

• 1 x 32A 230V single-phase industrial socket
• 1 x 16A 400V three-phase industrial socket
• 12V 8.3A DC battery charging terminals
• Earth connection

This makes the XLD9500QT an extremely versatile option for workshops, industrial environments, commercial premises and other applications where both single and three-phase equipment is used.

Electric Key Start

Starting the XLD9500QT is straightforward thanks to its convenient electric key start system, providing quick and effortless starting without the need to manually pull-start a large diesel engine.

AVR Controlled Alternator

The generator is equipped with an Automatic Voltage Regulator (AVR), helping maintain stable voltage output as electrical loads change.

This provides a more consistent electrical supply for compatible tools, machinery and other equipment.

Digital Information Centre

The integrated digital information centre allows important operating information to be monitored directly from the control panel, including:

• Voltage
• Frequency (Hz)
• Operating hours

The hour meter is particularly useful for monitoring generator usage and planning routine servicing and maintenance.

26-Litre Fuel Tank

A substantial 26-litre diesel fuel tank provides extended running capability, reducing the frequency of refuelling during longer working periods.

This makes the generator particularly useful for prolonged site work, commercial applications and standby power requirements.

Remote Start & ATS Capability

The XLD9500QT also provides 2-wire remote start / ATS capability, allowing the generator to be incorporated into suitable compatible remote-start or automatic transfer arrangements.

Enclosed Design

The generator's enclosed casing helps protect its internal components while also contributing to reduced operating noise compared with traditional open-frame diesel generators.

The XLD9500QT has a rated noise level of approximately 75dB(A) at 7 metres.

Euro V Diesel Engine

The generator uses a Euro V certified diesel engine, combining strong performance with modern emissions compliance.

Built for Professional Applications

At approximately 91.5cm long including the handle, 52cm wide and 78.5cm high, the XLD9500QT provides substantial generating capacity within a compact enclosed package.

The unit weighs approximately 175kg and incorporates wheels and a transport handle to assist with positioning and movement.

Ideal Applications

The combination of 6kW rated power, 230V single-phase and 400V three-phase output makes the XLD9500QT particularly suitable for:

• Workshops and garages
• Construction and trade applications
• Commercial premises
• Agricultural applications
• Industrial equipment
• Three-phase machinery
• Backup and standby power
• Mobile businesses
• Professional power requirements

1-Year Warranty

The Excel Power XLD9500QT is covered by a 1-year warranty, providing additional reassurance with your purchase.

Key Features

• 6500W (6.5kW) starting output
• 6000W (6kW) rated output
• 230V single-phase output
• 400V three-phase output
• Full single-phase and three-phase output
• Electric key start
• AVR-controlled alternator
• 1 x 32A 230V single-phase socket
• 1 x 16A 400V three-phase socket
• 12V 8.3A DC battery charging terminals
• Digital Voltage / Hz / Hours information centre
• 26-litre fuel tank
• 2-wire / ATS remote start capability
• Low oil alert
• Earth connection
• Euro V certified
• 75dB(A) at 7 metres
• Integrated wheels and transport handle
• 1-year warranty
